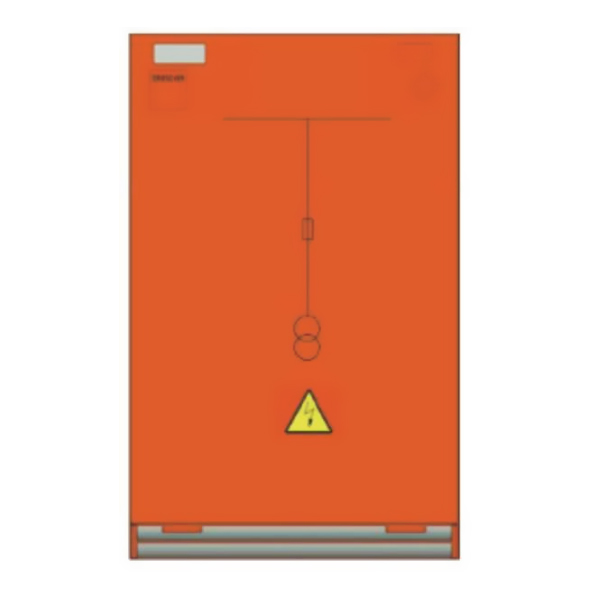

PT Unit (PT)

Standard Configuration and Features

• Potential transformer (PT)
• Current-limiting fuse of PT
• 630A cable plug or 250A elbow-type connector
• 25kV elbow-type cable plug
• PT connecting cable

Optional Configuration and Features

• Capacitive live display
• Electromagnetic lock
• AC UPS system
• DC power source module and battery
• Voltmeter, and change-over switch
• Prefabricated lightning arrester
• Top connecting bushing
• External busbar
• Busbar connecting cable plug

Outline Dimension of 12KV Unit Cubicle (mm): width 400/500/600, depth 718, height 1300/1500/1700

Outline Dimension of 24KV Unit Cubicle (mm): width 500/600, depth 718, height 1300/1500/1700
