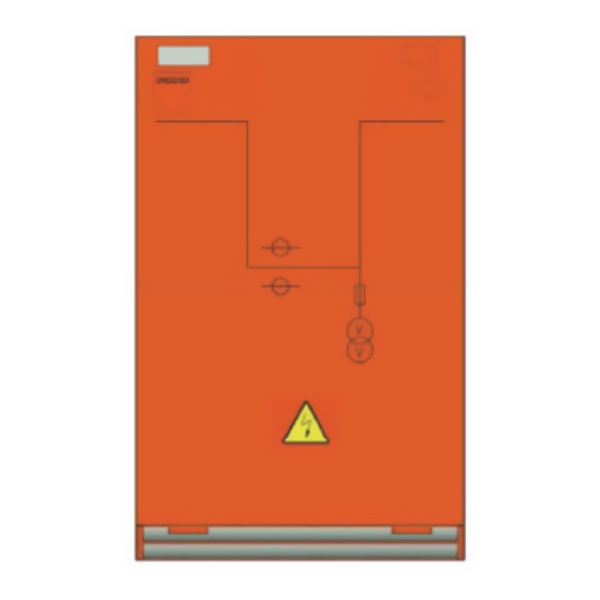

Metering Unit (M)

Standard Configuration and Features

• Top connecting bushing
• Potential transformer (PT)
• Current transformer (CT)
• Current-limiting fuse of PT and mounting bracket
• 630A connecting copper bar
• Multifunctional metering terminal box
• Nameplate
• Lead seal

Optional Configuration and Features

• Multifunctional Meter
• Capacitive live display
• Ammeter, Voltmeter, and change-over switch
• External busbar
• Busbar connecting cable accessories

Outline Dimensions

Outline Dimension of 12KV Unit Cubicle (mm): width 700, depth 818, height 1500/1700

Outline Dimension of 24KV Unit Cubicle (mm): width 850, depth 1068, height 1500/1700
