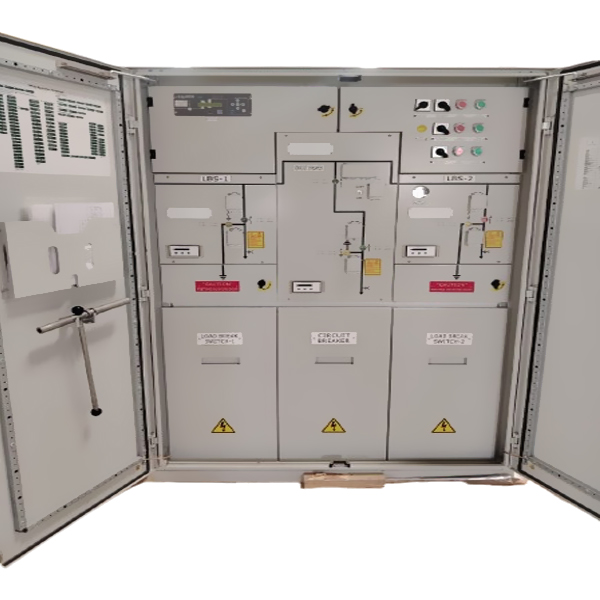

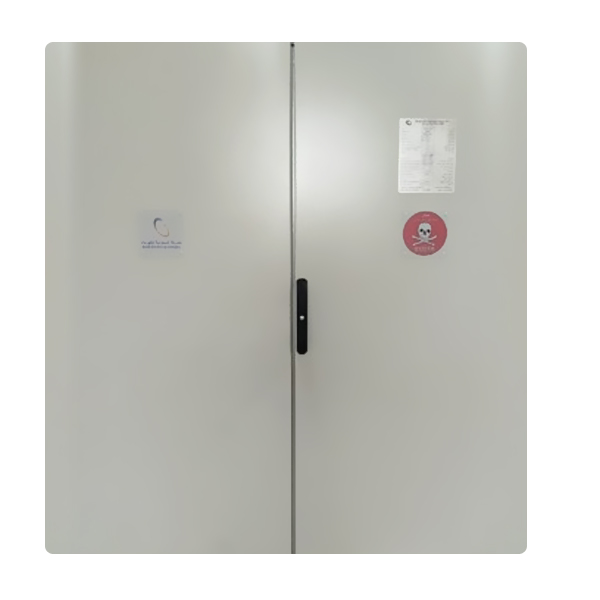

Three Way Type
GIS-ELA-KKVK
GIS-ELA-KKVK
| Type |
GIS.ELA-KKVK |
| Contract No. |
XXXXXX |
| Serial No. |
2022UIS-009-1 |
| Manufacturing Date |
2022.12 |
| Rated Voltage |
17.5 kV |
| Rated Frequency |
60 Hz |
| Degree of Protection |
IP54 |
| Power Frequency Withstand Voltage |
38 kV |
| Impulse Withstand Voltage |
95 kV |
| Weight |
970 Kg |
| Load Switch |
400A |
| Circuit Breaker |
200A |
| Short Circuit Peak Making Current |
54.6 kA |
| Short Circuit Rating/Durating |
21 kA/1s |
| Earth Switch Peak Making Current |
54.6 kA |
| Secondary Operating Voltage |
DC24V |
| Inflation Pressure |
0.04 MPa/20°C |
| Executive Standard |
IEC62271 |
| SEC Specification Reference |
32-SDMS-11 |
| Country of Origin |
Saudi Arabia |
